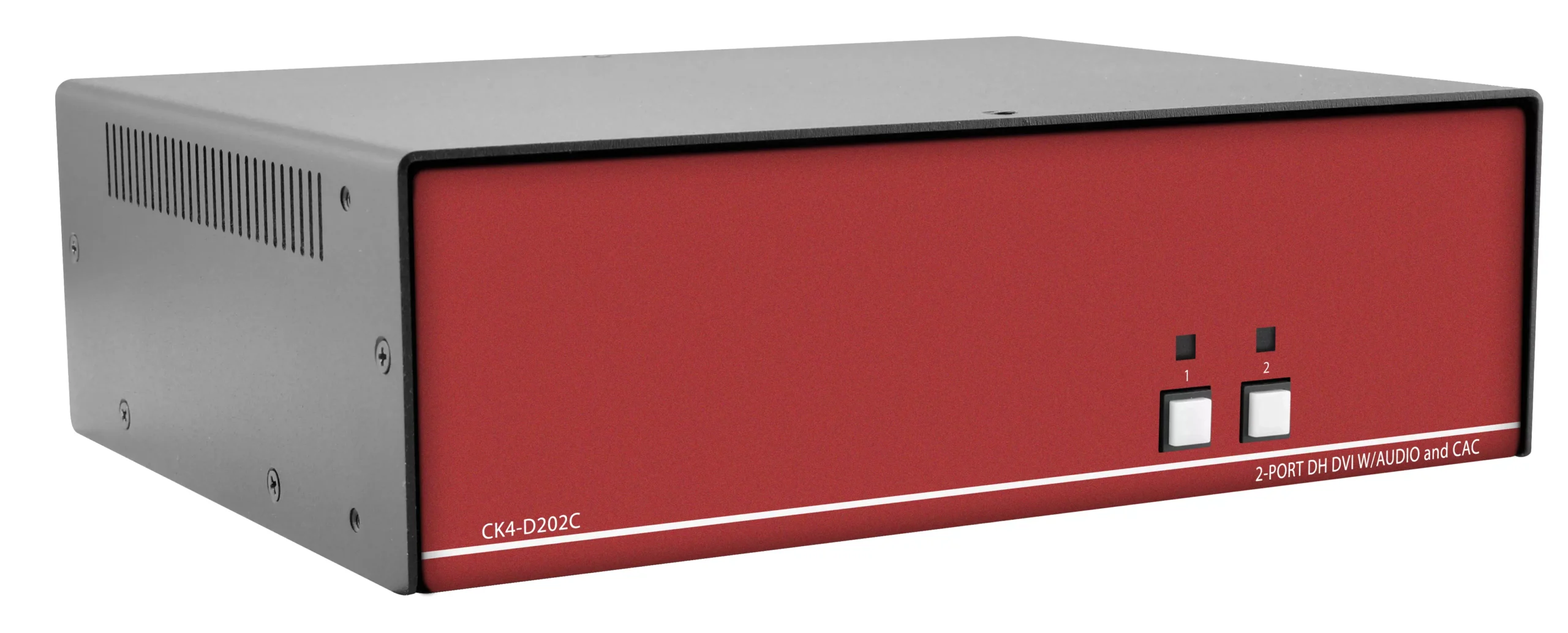

CK4-D202C
Secure 2-Port, Dual-Head DVI KVM Switch with Dedicated CAC Port
- Supports Windows, Mac and Linux OS
- Dual-head DVI-I video interface
- Native DVI-I resolutions
support up to 2560×1600 @ 60Hz - 4K HD resolution – supports up to 3840 x 2160 @ 30Hz
- Advanced configurable CAC port
- External power supply –
Level VI efficiency - Max video input resolution 4K2K@60Hz
- Computer interface isolation while powered or unpowered
- Ensures all user data is completely isolated and no data is ever stored
- No external interfaces can be used, only keyboard, mouse and CAC devices accepted
- Secure channel switching with leak prevention, no hotkeys

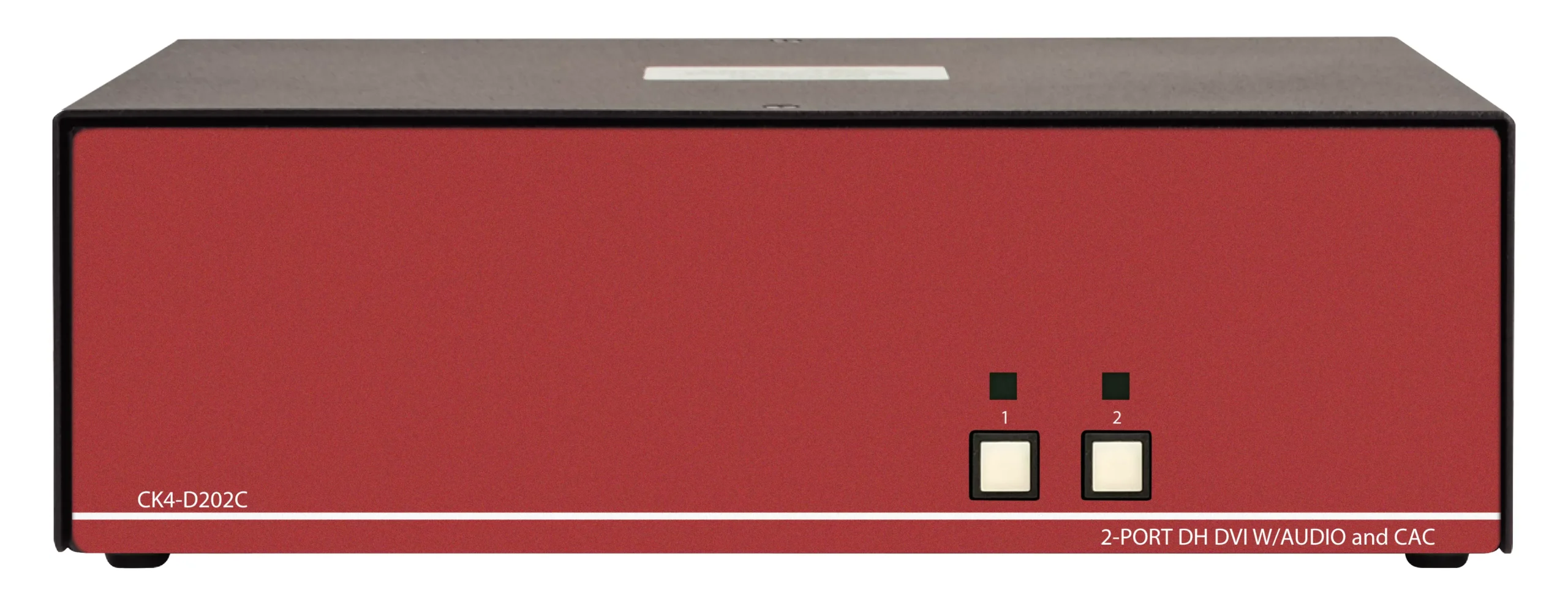

- Front panel tactile buttons for secure channel switching and LED channel indicators
- Peripheral and authentication ports isolation for secure usage
- Tamper evident label and anti-tampering technology
- No wireless devices connected
- Ensures only trusted admin gains access
- Government Operations
- Defense Applications
- Secure Control Rooms
- Corporate Communications
- Server Operations
- Educational Administrations
- Medical Facilities
- Banking Network
- Insurance Data Centers
- Transit Management
- Industrial Operation
- Intelligence Communications
VIDEO | |
---|---|
Format | DVI-I Dual Link, DVI 1.0, DVI-D, XVGA |
Max. Pixel Clock | 248 MHz |
Input Interface | (4) DVI 23-pin |
Output Interface | (2) DVI 23-pin |
Resolution | Up to 4K (3840×2160 @30Hz) |
DDC | 5 volts p-p (TTL) |
Input Equalization | Automatic |
Input Cable Length | Up to 20 ft. |
Output Cable Length | Up to 20 ft. |
Data Rate | 1.65 Gbps per color |
AUDIO | |
Audio Input | (2) 3.5mm stereo audio |
Audio Output | (1) 3.5mm stereo audio |
USB | |
Input Interface | (4) USB Type B |
Output Interface | (2) USB 1.1 Type A for KM Devices |
Emulation | USB 1.1 and USB 2.0 Compatible |
CAC | Configurable USB 2.0 Port |
CONTROL | |
Front Panel | Front panel SELECT buttons |
OTHER | |
Power | External 100-240 VAC/ 12VDC3A @ 36W |
Dimensions | 8.8” W x 2.63” H x 6.69” D |
Weight | 3.85 lbs |
Approvals | NIAP PP 4.0, UL, CE, ROHS Compliant |
Operating Temperature | +32 to +104°F (0 to +40°C) |
Storage Temperature | -4 to 140°F (-20 to +60°C) |
Humidity | Up to 80% (No Condensation) |
Part No. | Description |
---|---|
CK4-D202C | 2-Port DH Secure Pro DVI KVM w/audio and CAC, PP 4.0 |
