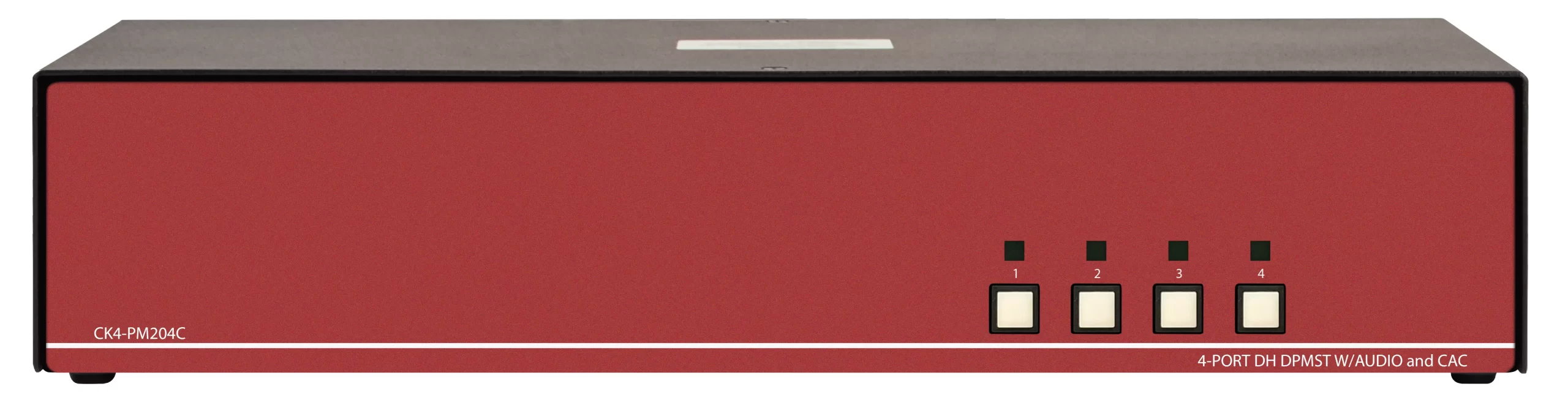

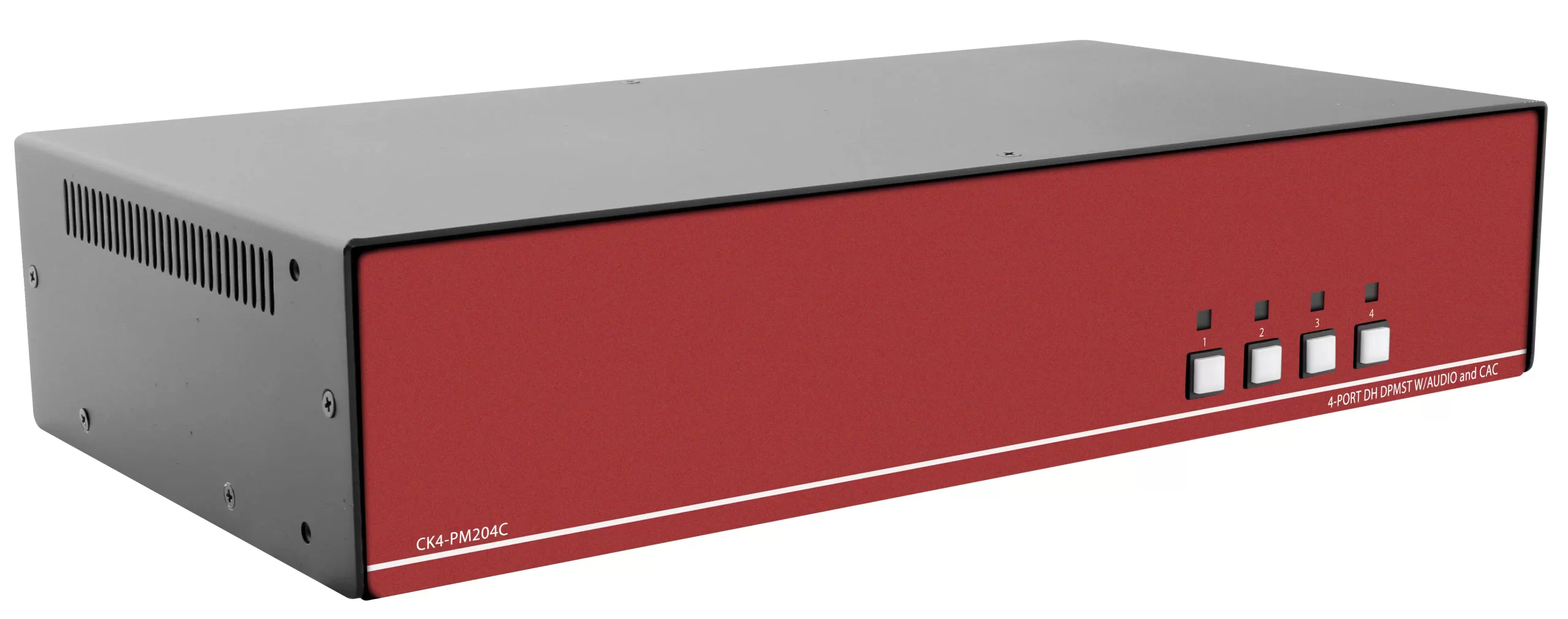

CK4-PM204C
Secure 4-Port, Dual-Head DP MST KVM Switch with Dedicated CAC Port and 4K HD Support
- Supports Windows, Mac and Linux OS
- Dual-head DisplayPort to Quad-Head HDMI video interface
- 4K HD resolution – supports up to 3840 x 2160 @ 30Hz
- DisplayPort1.2a dual mode receiver
- HDMI/DVI operation up to 320MHz
- Max video input resolution 4K2K@60Hz
- Multi-Stream Transport supports up to 2 streams
- Supports RGB or YCbCr
- Advanced configurable CAC port
- External power supply – Level VI efficiency
- Computer interface isolation while powered or unpowered
- Ensures all user data is completely isolated and no data is ever stored
- No external interfaces can be used, only keyboard, mouse and CAC devices accepted
- Secure channel switching with leak prevention, no hotkeys
- Front panel tactile buttons for secure channel switching and LED channel indicators
- Peripheral and authentication ports isolation for secure usage
- Tamper evident label and anti-tampering technology
- No wireless devices connected
- Ensures only trusted admin gains access
- Government Operations
- Defense Applications
- Secure Control Rooms
- Corporate Communications
- Server Operations
- Educational Administrations
- Medical Facilities
- Banking Network
- Insurance Data Centers
- Transit Management
- Industrial Operation
- Intelligence Communications
| VIDEO | |
|---|---|
| Format | DisplayPort, HDMI |
| Max. Pixel Clock | 248 MHz |
| Input Interface | (8) DisplayPort 20-pin |
| Output Interface | (4) HDMI 19-pin |
| Resolution | Up to 4K (3840×2160 @30Hz) |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| Data Rate | 1.65 Gbps per color |
| AUDIO | |
| Audio Input | (4) 3.5mm stereo audio |
| Audio Output | (1) 3.5mm stereo audio |
| USB | |
| Input Interface | (8) USB Type B |
| Output Interface | (2) USB 1.1 Type A for KM Devices |
| Emulation | USB 1.1 and USB 2.0 Compatible |
| CAC | Configurable USB 2.0 Port |
| CONTROL | |
| Front Panel | Front panel SELECT buttons |
| OTHER | |
| Power | External 100-240 VAC/ 12VDC3A @ 36W |
| Dimensions | 12.57” W x 2.7” H x 6.69” D |
| Weight | 4.2 lbs |
| Approvals | NIAP PP 4.0, UL, CE, ROHS Compliant |
| Operating Temperature | +32 to +104°F (0 to +40°C) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Humidity | Up to 80% (No Condensation) |
| Part No. | Description |
|---|---|
| CK4-PM204C | 4-Port DH Secure Pro DP MST KVM w/audio and CAC, PP 4.0 |
